Reliably connect devices to your local area network with the TSW110 Layer 2 Switch. Offers 5 gigabit ethernet ports, where one can also be used to power the switch for added convenience.
The TSW110's compact design allows it to fit neatly in tight spaces like monitoring stations, utility cabinets, and control panels.
Setting up the TSW110 is a breeze—mount it on a DIN rail, wall, or any flat surface. No configuration is needed, perfect for simple applications.
The TSW110’s rugged design offers vibration resistance and the ability to withstand extreme temperatures, making it perfect for industrial use.

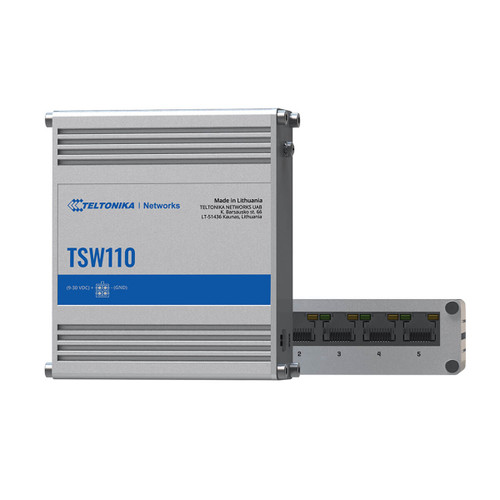

The TSW110 is an unmanaged layer 2 Ethernet switch by Teltonika Networks. Equipped with 5 Gigabit Ethernet ports, it offers reliable connectivity for high-bandwidth applications.
Designed to fit in small spaces easily, the TSW110 measures 85x30x100 mm. You can install it on a DIN rail, wall, or even place it on a flat surface. Switch does not need to be configured to deploy, enabling a plug-and-play setup. It can be powered through the power socket or the first Ethernet port.
Its rugged aluminum housing ensures operation in temperatures ranging from -40°F to 167°F, making it perfect for industrial spaces.
| Port Count | 5x Ports |
| Speeds | Up to 1000 Mbps |
| Dimensions | 85 x 30 x 100 mm |
| Operating Temperature | -40°F to 167°F |
| Power Supply | 9W US Power Supply (SKU: PR3PUUS3) |
| Design | Industrial Grade Design |
|
Teltonika TSW110 Specifications Sheet |
Unlike the TSW100, the TSW110 does not offer PoE+ capabilities, making it a more basic model.
A Layer 2 (L2) switch links devices on a local network and forwards data according to their MAC addresses.
Unmanaged switches are ready for use out of the box. They do not need to be configured, enabling a fast and easy installation.
The TSW110 does not feature PoE support. If PoE is necessary for your setup, the TSW100 would be a better choice.
