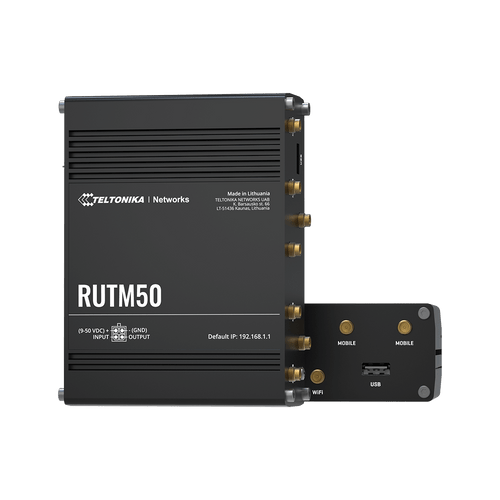

The RUTM50 industrial cellular router powers businesses with 5G. Offering high-speed and low-latency connectivity, it ensures dependable data transfer and communication for critical applications, video conferencing, and more.
Built with one WAN port and dual SIMs, the RUTM50 can be used as a primary or backup internet solution for offices and vehicles. Auto failover guarantees continuous uptime, promoting uninterrupted productivity and efficient business operation.
RUTM50 also enhances fleet management with GPS capabilities and geofencing support. Effortlessly track your vehicles in real time and set virtual boundaries around designated areas for better control over mobile assets.
No matter where your business operates, count on the RUTM50 to provide the best possible internet connection for up to 150 devices. Supporting Standalone and Non-Standalone 5G with backward 4G compatibility, it maximizes connectivity in any environment.
Using RutOS, the RUTM50 offers an intuitive open-source interface. IT directors have the flexibility to modify operation to your specific needs. Compatible with the Remote Management System (RMS), performance can be managed and monitored from anywhere.
The RUTM50 is an FCC industrial cellular router with a 4X4 MIMO 5G mobile module that supports both Standalone and Non-Standalone 5G, empowering businesses with next-generation speeds, latency, and capacity. With GPS and geofencing support, it's also great for mobile applications. It boasts cellular speeds up to 3.4 Gbps down and 550 Mbps up. Backwards compatible with 4G (LTE Cat 19/18), connection will not falter.
Equipped with one WAN port, it’s the perfect backup solution for primary broadband internet services, ensuring business as usual even during internet outages. Dual SIM with auto-failover allows automatic switching between two carriers for always-on connectivity. It’s compatible with AT&T, T-Mobile, and Verizon.
Devices can connect over WiFi 5 with data transmission rates up to 867 Mbps. Dual band, choose between 2.5 GHz or 5 GHz for best performance. You also have the option to wire up to four devices via its Ethernet LAN ports. With robust security features, all data is protected.
| Mobile Module |
5G Sub-6 GHz SA NSA 2.4 3.4Gbps DL (4x4 MIMO) 550Mbps UL (2x2 MIMO) 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO) UL Cat 18 200Mbps |
| SIM Switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) |
| Wi-Fi Security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
| WAN | 1 x WAN port (can be configured as LAN) 10, 100, 1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI, MDIX crossover |
| LAN | 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| Server Software | TAVL, RMS |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Dimension |
132 x 44.2 x 95.1 mm |
| WEIGHT | 519 g |
| PDFs |
Specifications Sheet |
This 5G industrial router is the perfect primary or backup internet solution for offices. Though, it can also be used in vehicles, like RVs and fleets, as well as homes with limited broadband options.
It supports Mini SIMs (2FF).
Non-Standalone (NSA) and Standalone (SA) 5G are types of 5G networks. The former piggybacks off the 4G LTE network, while the latter operates independently from 4G LTE. Supporting NSA and SA enables the RUTM50 to deliver the best 5G experience. Not all 5G routers support both SA and NSA 5G.
It’s certified for use with AT&T and T-Mobile but can also work with Verizon.
It features WiFi 5 technology with transmission rates up to 867 Mbps.
