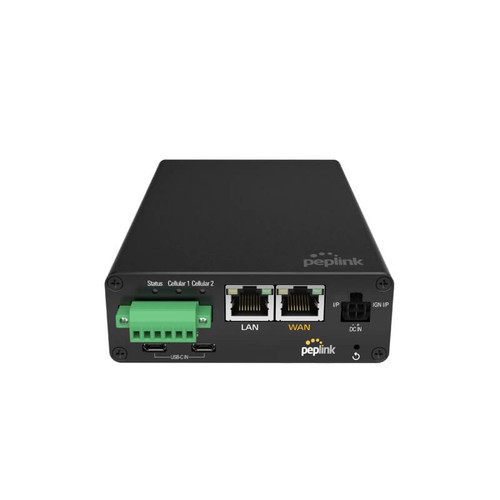

The Peplink Max Transit Pro Duo delivers fast, reliable WiFi to all your passengers. It supports up to 150 devices and offers up to 1 Gbps of throughput. Advanced GPS ensures reliable fleet tracking. Compact and rugged enclosure allows for easy deployment in any vehicle no matter the environment.
Experience superior internet for mobile work or play with the Max Transit Pro Duo. Designed for vehicles, it'll provide drivers, passengers, and IoT devices fast dual-band WiFi 6 connectivity. New-gen tech ensures greater performance in congested environments.
Featuring dual LTE modems, the Max Transit Pro Duo can provide two simultaneous connections. Each modem supports two SIM cards allowing more redundancy for continuous uptime. Make use of a third network via the Gigabit WAN. With Peplink's SpeedFusion, you can bond the cellular and WAN interfaces for a faster, more reliable connection. Unreliable internet will be a thing of the past.
Whether for fixed or on-the-go deployments, the Max Transit Pro Duo offers multiple power options to eliminate shutdown. Duo USB-C power bank input ports, a 4-pin Molex connector, and a 6-pin terminal block connector ensure the router remains powered on.
The Max Transit Pro Duo simplifies running a business. It's SDWAN and edge computing capable. Use Docker and Python to install and run third-party applications. With 256-bit AES Encryption, your applications are kept protected.
The Peplink Transit Pro Duo is a powerful, industrial grade, SDWAN capable, highly reliable WiFi 6 mobile router. Deploy it in trains, ships, buses, and emergency vehicles. Advanced GPS allows for reliable fleet tracking. Extremely versatile, it can even be used in offices, restaurants, and warehouses. Standard, vehicle exclusive, and custom bundles available.
Compact enclosure houses two cellular modems with redundant SIM cards. Modem 1, optimized for T-Mobile and Verizon, offers an LTE CAT 7 connection. Modem 2, optimized for AT&T and Verizon, offers an LTE CAT 12 connection. This configuration provides broader compatibility across carriers for superior uptime. You also have the option to stay connected via wired WAN or WiFi as WAN.
Thanks to edge computing, easily integrate third-party applications specific to your business. Always-on connectivity is made possible with multiple power input options.
Out of the box, the Transit Pro Duo comes with one year of PrimeCare. It includes SpeedFusion capabilities, SpeedFusion Cloud access, InControl2, FusionHub compatibility, and more.
| WAN Interface |
1x 10/100/1000M Ethernet 2x Embedded Cellular Modems with Redundant SIM Slots |
| LAN Interface | 1x 10/100/1000M Ethernet |
| Wi-Fi Interface |
Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6 2x2 MIMO Wi-Fi WAN and/or AP |
| SpeedFusion Features |
Hot Failover1, WAN Smoothing1, Bandwidth Bonding1 |
| Number of PepVPN SpeedFusion Peers | 2/52 |
| Features |
Edge Computing with Docker and Python3, Ignition Sensing |
| Router Throughput | 1Gbps |
| SpeedFusion Throughput (No Encryption) | 400 Mbps |
| SpeedFusion Throughput (256-bit AES) | 200 Mbps |
| Recommended Users | 25-150 |
|
Cellular Data Rate4 (Downlink / Uplink) |
CAT-12: 600 Mbps / 150 Mbps CAT-7: 300 Mbps / 150 Mbps |
| Antenna Connectors |
4x SMA Cellular Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input |
Power Port: 12V - 56V DC AC Adapter: AC Input 100V-240V / DC Output 12V 2x USB-C 20V, 3A each for Power Input Terminal Block: 12V - 56V DC |
| Power Consumption | 10W (nominal), 18W (max.) |
| Dimensions | 6.3 x 3.8 x 1.3 inches / 160 x 97 x 33.5 mm |
| Weight | 1.61 pounds / 730 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications |
FCC, CE, RoHS, E-Mark5 EN61373 Shock and Vibration Resistance5 EN50155 Railway Applications - Electronic Equipment used on Rolling Stock5 EN61000 Electromagnetic Compatibility5 |
| Package Content |
1x Transit Pro 4x LTE Antennas (ACW-234) 2x Wi-Fi Dual Band Antenna (ACW-341) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4 Pin Power Supply (ACW-632) 1x 6 Pin Terminal Block Connector 1 Pair of Mounting Brackets (ACW-724) |
| Warranty | 1-Year Limited Warranty |
1 Requires a PrimeCare subscription, complimentary for the first year.
2 5 PepVPN Peers are enabled for PrimeCare models which requires a PrimeCare subscription, complimentary for the first year.
3 Feature will be available soon.
4 Maximum theoretical data rates.
5 Certification pending.
The Peplink Max Transit Pro Duo has two LTE modems. Each modem supports up to 2 SIM cards, allowing the router to access multiple cellular networks. The provided LTE antennas capture existing LTE signals from up to two carriers at the same time. The captured cell signal is then converted into reliable internet. Users can connect via WiFi or Ethernet. If your main LTE connections go down, the router switches to a secondary SIM for continuous uptime.
The Max Transit Pro Duo is optimized for vehicle applications. However, it can also be deployed in home offices, shops, and restaurants.
The main differences between the two LTE modems are speed and supported frequencies.
The LTE CAT 7 modem offers download speeds up to 300 Mbps and upload speeds up to 150 Mbps. It supports LTE frequency bands 2, 4, 5, 7, 12, 13, 14, 25, 26, 41, 42, 43, 48, 66, 71. Works best with T-Mobile and Verizon.
The LTE CAT 12 modem offers download speeds up to 600 Mbps and upload speeds up to 150 Mbps. It supports LTE frequency bands 1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 14, 18, 19, 20, 26, 29, 30, 32, 41, 42, 43, 46, 48, 66. Works best with AT&T and Verizon.
Band 71 is only supported by the LTE CAT 7 modem.
Yes. Both LTE modems support FirstNet frequency bands.
The Max Transit Pro Duo has a rated throughput of 1 Gbps. Modem 1 offers speeds up to 300 Mbps, and modem 2 offers speeds up to 600 Mbps. Maximum speed, however, is theoretical. Actual results will depend on your data plan and signal strength.
It uses Nano-SIM cards (4FF).
Yes. It's complimentary for the 1st year.
No. With two modems, the Transit Max Pro Duo can support two simultaneous connections. While you may have four active SIM cards, only two can be used at a time. The other two add redundancy for continuous connectivity.
PrimeCare is Peplink's subscription service bundling InControl, Warranty, SpeedFusion license upgrades, and FusionHub Licenses in one neat package.
All our Peplink routers come with 1-year of PrimeCare upon activation.
You will need at least one SIM Card with an activated data plan to receive data from this cellular router
SIM Cards are sold separately
