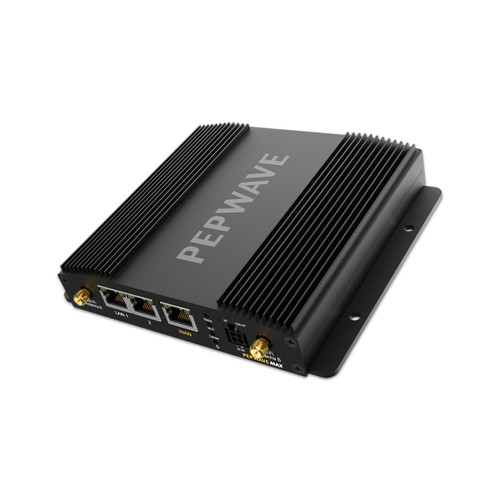

The Peplink Max BR1 CAT 20 offers a next-level internet experience. Cover your RV, bus, or ambulance with blazing-fast dual-band WiFi 6. Versatile, you can even use it in your office. Connect up to 150 devices, and enjoy faster throughput, more capacity, and less interference.
Equipped with an LTE CAT 20 modem, the Max BR1 CAT 20 supports download speeds up to 2 Gbps*. Dual-SIM, connection automatically switches to the best available LTE network. Devices remain connected without visible downtime.
*Speed depends on your data plan and signal strength.
Featuring a 2.5 Gigabit Ethernet WAN port, the Max BR1 CAT 20 supports higher connection speeds than other LTE routers on the market. Network devices can run at their designated speeds without limitations.
From railways to warehouses, the Max BR1 CAT 20 is built to work wherever you need it. It's heat, cold, shock, and vibration resistant. Deploy without worry and enjoy reliable internet access on the go or in the office.
SpeedFusion Cloud* ready, a SpeedFusion deployment is made easier. The Max BR1 CAT 20 can access nearby Peplinks SpeedFusion nodes for unbreakable connectivity, saving you time and money. Protect all outbound traffic by setting up unique policies. SDWAN capable, easily integrate it into your company's private SDWAN network.
*SpeedFusion Cloud is included with PrimeCare, which is complimentary for one year.
The Peplink Max BR1 Pro CAT 20 is a fast, WiFi 6 LTE router. Shock, vibration, and extreme temperature resistant, it's deployable anywhere. Install it in your RV, bus, train, police car, ambulance, or office. You have the option to build your own bundle, get it as is, or choose from our exclusive building and vehicle bundles.
Built with an upgraded processor and an LTE CAT 20 modem, get maximum download speeds of up to 2 Gbps. Connect multiple devices using 2.4/5 GHz WiFi, two Gigabit LAN ports, and one 2.5 Gigabit WAN/LAN port. Use up to two SIM cards for more redundancy, ensuring “always-online” connectivity for all devices. Keep track of fleet vehicles using advanced GPS functionalities.
Connect the Max BR1 Pro CAT 20 to your SD-WAN infrastructure or make use of SpeedFusion Cloud to build an unbreakable network. Whether you have a single unit or multiple, access to Peplink's SpeedFusion nodes allows bandwidth bonding, WAN smoothing, and hot failover. Standard with one year of
PrimeCare, you'll have full access to SpeedFusion capabilities, SpeedFusion Cloud, InControl, and more.
| WAN Interface |
1x 10/100/1000/2500M Ethernet1 1x LTE-A Pro Modem with Redundant SIM Slots |
| LAN Interface | 2x 10/100/1000M Ethernet |
| Wi-Fi Interface |
Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MU-MIMO Wi-Fi WAN and/or AP |
| SpeedFusion features |
Hot Failover, WAN Smoothing, Bandwidth Bonding2 |
| Number of PepVPN | 2/53 |
| Features |
Drop-in Mode Load Balancing/Failover Ignition Sensing |
| Router Throughput | 1 Gbps |
| PepVPN Throughput (No Encryption) | 400 Mbps |
| PepVPN Throughput (256-bit AES) | 200 Mbps |
| Recommended Users | 1-150 |
| Cellular Data Rate4 (Downlink/Uplink) | CAT-20: 2 Gbps / 211 Mbps |
| Antenna Connectors |
4x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | 10 - 30V |
| Power Consumption | 8 W (nominal), 19 W (max.) |
| Dimension | 5.78 x 5.08 x 1.15 inches / 146.8 x 129 x 29.3 mm |
| Weight | 1.28 pounds / 0.58 kg |
| Operating Temperature | -40°– 149°F / -40°– 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Warranty | 1-Year Limited Warranty |
| Certifications |
FCC, CE, RoHS E-Mark (Motor Vehicle)5 EN 61373 Shock and Vibration Resistance5 EN 50155 Railway Applications - Electronic Equipment used on Rolling Stock EN 61000 Electromagnetic Compatibility |
| Package Content |
1x MAX BR1 Pro CAT-20 1x 12V2A Power Supply (ACW-632) 4x LTE/5G Antennas (ACW-234) 2x Wi-Fi Dual Band Antenna (ACW-341) 1x GPS Antenna (ACW-232) |
1 The WAN port can act as a LAN port if needed.
2 Requires PrimeCare Subscription, complementary for the first year
3 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled with PrimeCare Subscription, complimentary for the first year.
4 Theoretical maximum data rates.
5 Certifications Pending.
The Peplink Max BR1 Pro uses up to two SIM cards to access multiple cellular networks. It captures existing LTE signals from one carrier at a time using its four LTE antennas. The cellular signal is then converted into reliable internet. Devices can connect via WiFi or Ethernet.
The Max BR1 Pro can be used in various fixed and mobile applications. It's deployable in boats, ships, buses, trains, emergency vehicles, warehouses, homes, offices, and more.
It works with all major US and Canadian cellular providers.
No. You can only use one SIM at a time. In the event your main connection drops, the router will switch to the second SIM.
Yes.
Yes.
Yes. It's complimentary for one year.
SpeedFusion Cloud is Peplink's global network of SpeedFusion nodes. It leverages your router, several technologies, and SpeedFusion nodes to provide unbreakable connectivity.
Bandwidth Bonding: Enables you to combine the speed of multiple connections for heavier data transfers.
Hot Failover: Helps automatically transfer your connection to an active link in the event your primary connection drops.
WAN Smoothing: Minimizes latency and reduces packet loss for a smoother online experience.
No. With two modems, the Transit Max Pro Duo can support two simultaneous connections. While you may have four active SIM cards, only two can be used at a time. The other two add redundancy for continuous connectivity.
PrimeCare is Peplink's subscription service bundling InControl, Warranty, SpeedFusion license upgrades, and FusionHub Licenses in one neat package.
All our Peplink routers come with 1-year of PrimeCare upon activation.
You will need at least one SIM Card with an activated data plan to receive data from this cellular router
SIM Cards are sold separately
